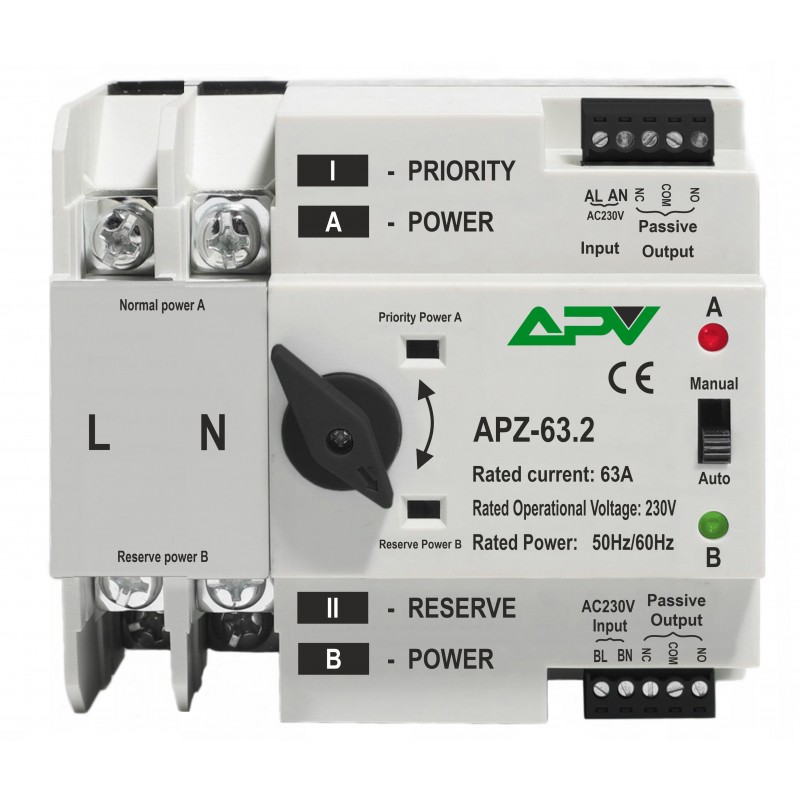

Single-phase Automatic Transfer Switch ADELID APZ-63.2 (63A, 2P)

Single-phase Automatic Transfer Switch ADELID APZ-63.2 (63A, 2P)

ADELID APZ-63.2 is a single-phase automatic transfer switch designed to ensure continuous and reliable power supply. In case of a mains power failure, the device automatically and rapidly (<50 ms) switches the load to the backup source. Once the main supply is restored, it switches back to the primary source.

Suitable for residential buildings, commercial spaces, industrial installations, server rooms, alarm systems, and all applications requiring uninterrupted power.

Technical Specifications

• Model: APZ-63.2

• Dimensions: 107×96×69 mm

• Enclosure material: plastic

• Number of poles: 2P

• Rated current (In): 63A

• Coil voltage (Ue): 230V AC

• Insulation voltage (Ui): 690V AC

• Impulse withstand voltage (Uimp): 8 kV

• Frequency: 50/60 Hz

• Switching time: <50 ms

• Power interruption time: <50 ms

• Operating mode: automatic / manual

• Function: automatic switching to backup power during mains failure and returning to the main supply when restored

Wiring Diagram

A — Main power input
B — Control line / auxiliary contacts
C — Backup power input
D — Power output
E — Control line / auxiliary contacts
