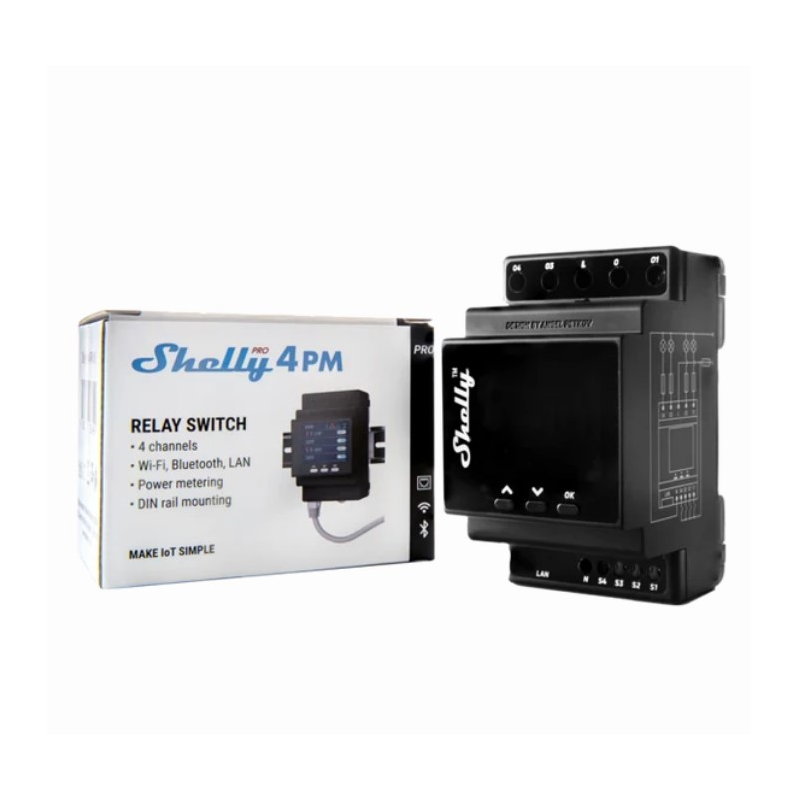

Shelly Pro 4PM – Professional 4-Channel DIN Relay with Energy Metering, LAN and Wi-Fi

Shelly Pro 4PM is an advanced four-channel smart relay designed for installation on a DIN rail inside an electrical distribution panel. The device combines control of four independent electrical circuits with energy monitoring, LAN and Wi-Fi connectivity, and a color graphical display.

Thanks to its wide range of functions and local operation capabilities, Shelly Pro 4PM is suitable for home automation as well as offices, commercial, retail and industrial facilities.

The device provides independent control of four channels, allowing convenient management of lighting, electrical sockets, heating, air conditioning, pumps, gates and other electrical loads.

Key Features

• 4 independent control channels
• Relay outputs for independent circuit control
• Energy monitoring on each channel
• Installation on a standard DIN rail
• Power supply: 110–240 V AC
• Maximum load: up to 16 A per channel
• LAN connectivity via RJ-45 port
• Wireless Wi-Fi connectivity
• Color graphical display
• Built-in web interface
• Local operation without cloud connection
• Shelly Cloud support
• MQTT, API and Webhook support
• Schedules and automation
• Remote firmware updates
• Monitoring and diagnostic functions
• Robust housing designed for installation in an electrical distribution panel

Energy Monitoring

Shelly Pro 4PM allows energy consumption to be monitored on each of the four channels. This makes it possible to control the power consumption of individual loads, analyze their operation and more easily identify irregularities, overloads and potential faults.

Energy consumption data can be used in automation scenarios and to optimize the operating costs of the electrical installation.

LAN and Wi-Fi Connectivity

The device is equipped with an RJ-45 Ethernet port and a Wi-Fi module. LAN connectivity provides stable communication with the local network, while Wi-Fi enables wireless integration with automation systems.

Shelly Pro 4PM can operate locally without requiring a cloud connection. This allows the main control and automation functions to be performed within the local network.

Graphical Display

The built-in color graphical display provides quick access to information about the device status. The user can monitor channel status, energy consumption, as well as messages and diagnostic information.

Automation and Integration

Shelly Pro 4PM offers extensive integration options with smart home and building automation systems.

The device supports:

• Shelly Cloud
• MQTT
• API
• Webhooks
• schedules
• local automation
• web interface

This allows it to be used as part of advanced Smart Home, BMS and building automation systems.

Applications

Shelly Pro 4PM can be used to control and monitor:

• lighting;
• electrical sockets;
• heating;
• air conditioning;
• pumps;
• garage and entrance gates;
• selected electrical appliances;
• power zones in buildings;
• home and industrial automation systems.

The device is suitable for houses, apartments, offices, shops, commercial facilities and industrial installations.

DIN Rail Installation

Shelly Pro 4PM is designed for installation inside electrical distribution panels on a standard DIN rail. This design allows automation devices to be neatly organized and easily integrated into an existing electrical installation.

Safety and Reliability

The device features protection and diagnostic functions that allow operating conditions to be monitored. Its robust construction and distribution-panel installation make Shelly Pro 4PM suitable for professional electrical automation systems.

Technical Specifications

Device type: 4-channel smart relay
Installation: DIN rail
Number of channels: 4 independent relay outputs
Energy monitoring: on each channel
Power supply: 110–240 V AC
Maximum load: 16 A per channel
Wired connectivity: LAN, RJ-45
Wireless connectivity: Wi-Fi 802.11 b/g/n/ax
Interface: color graphical display, web interface
Integration: Shelly Cloud, MQTT, API, Webhooks
Automation: schedules and scenes
Local operation: yes
Firmware updates: via Internet or LAN
Housing: designed for installation in an electrical distribution panel

Shelly Pro 4PM is a versatile solution for professional control of four independent electrical circuits. The combination of energy monitoring, LAN, Wi-Fi, a color display and advanced automation features makes the device suitable for both smart homes and more demanding commercial and industrial installations.
