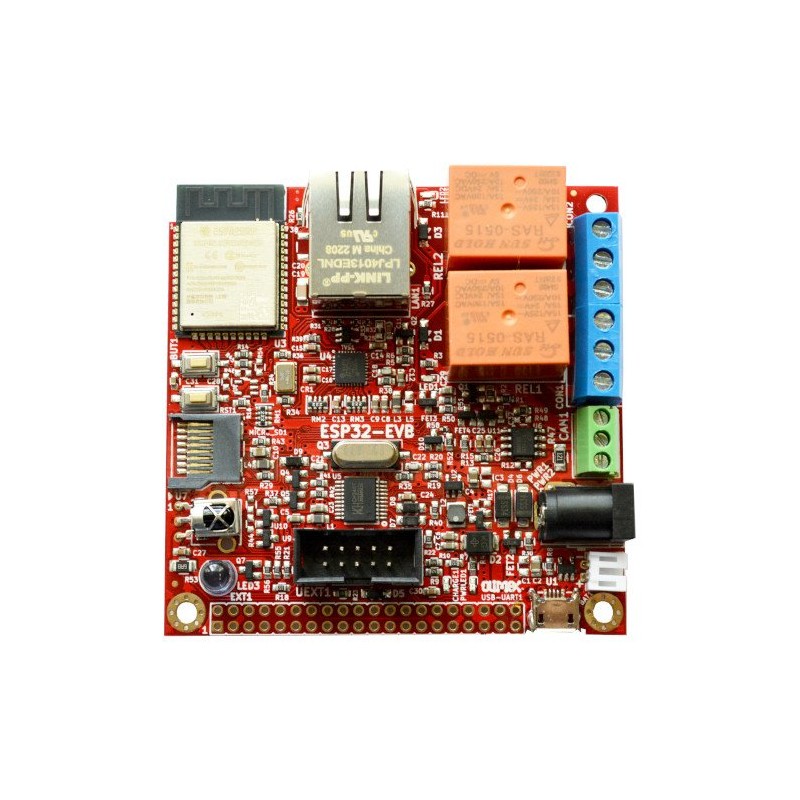

ESP32-EVB-EA DEVELOPMENT BOARD WITH WIFI BLE, ETHERNET, MICRO SD CARD, AND GPIO

ESP32-EVB This is the ultimate IoT board with wired 100Mb Ethernet Interface, Bluetooth LE, WiFi, Remote control IR, and CAN connectivity. The board can operate with single LiPo backup battery like UPS as it has an internal LiPo battery charger (no step-up converter, so relays, CAN and USB power would not work over battery). Two relays allow you to switch power appliances on and off.

ESP32-EVB is originally designed by OLIMEX Ltd and a result of continual improvements.

FEATURES:

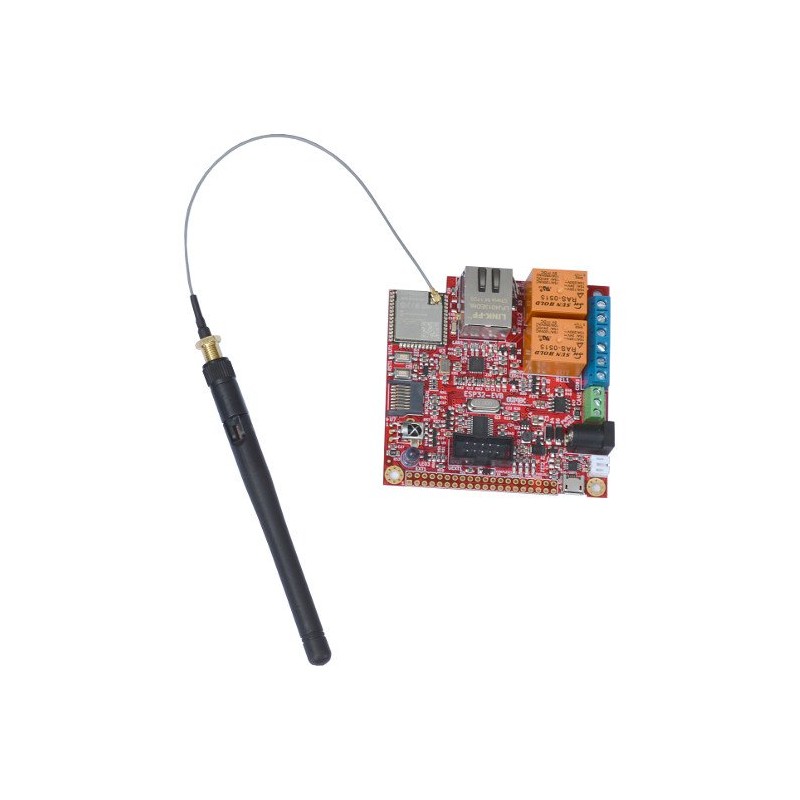

• ESP32-WROOM-32E or ESP32-WROOM-32UE module
• Ethernet 100Mb interface
• User button
• Reset button
• Built-in programmer for Arduino and ESP-IDF
• MicroUSB connector
• MicroSD card
• WiFi, BLE connectivity
• 2 x 10A/250VAC (15A/120VAC 15A/24VDC) relays with connectors and status LEDs
• CAN interface
• IR received and transmitter, up to 5 meters distance
• LiPo charger for stand alone operation during power breaks with 4 status LEDs
• Power jack for external power supply, 5V DC
• UEXT connector to connect UEXT modules
• GPIO 40 pin connector with all ESP32 ports
• Dimensions: (75 x 75)mm ~ (2.95 x 2.95)"
