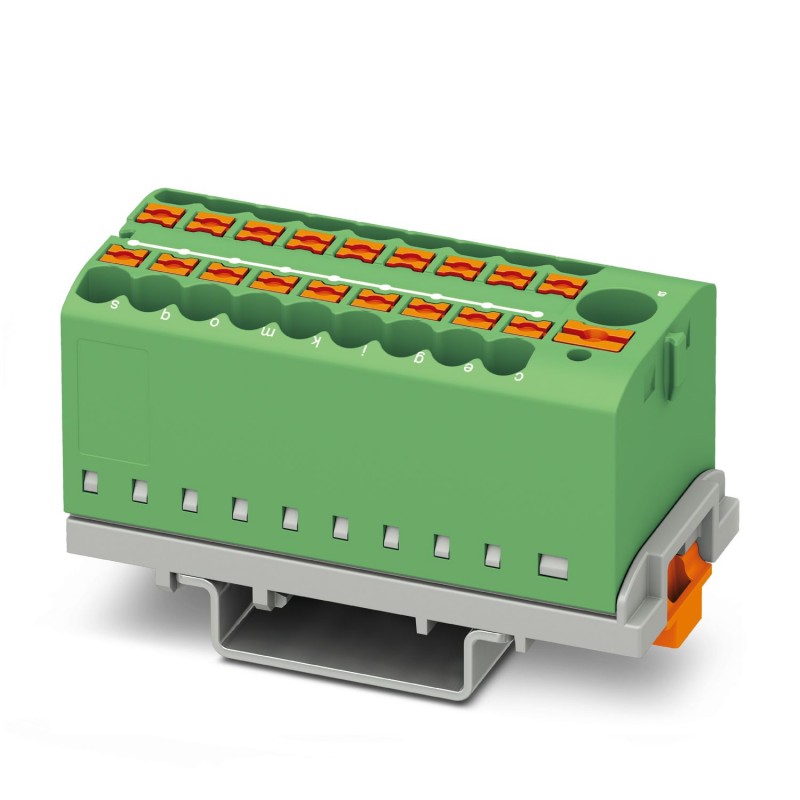

DIN Rail Distribution Block (green) PTFIX 6/18X2,5-NS35 GN

PTFIX 6/18X2,5-NS35 GN – DIN Rail Distribution Block (green)

The PTFIX 6/18X2,5-NS35 GN distribution block provides fast and reliable conductor termination using Push-in technology, allowing tool-free installation. Designed for NS35 DIN rail mounting, it features 19 terminals and supports a nominal current up to 41 A (maximum 57 A). The green version is intended for functional or special circuits according to wiring standards.

The unit complies with IEC 60947-7-1 and railway fire protection requirements (DIN EN 45545-2).

Key specifications:

• Number of terminals: 19

• Connection type: Push-in

• Rated voltage: 690 V

• Rated current: 41 A (up to 57 A max)

• Wire cross-section: up to 2.5 mm² (up to 10 mm² busbar)

• Mounting: DIN rail NS35

• Color: green (RAL 6021)

• Dimensions: 28.6 × 58.1 × 30.4 mm

• Overvoltage category: III

• Flammability rating: UL 94 V0
