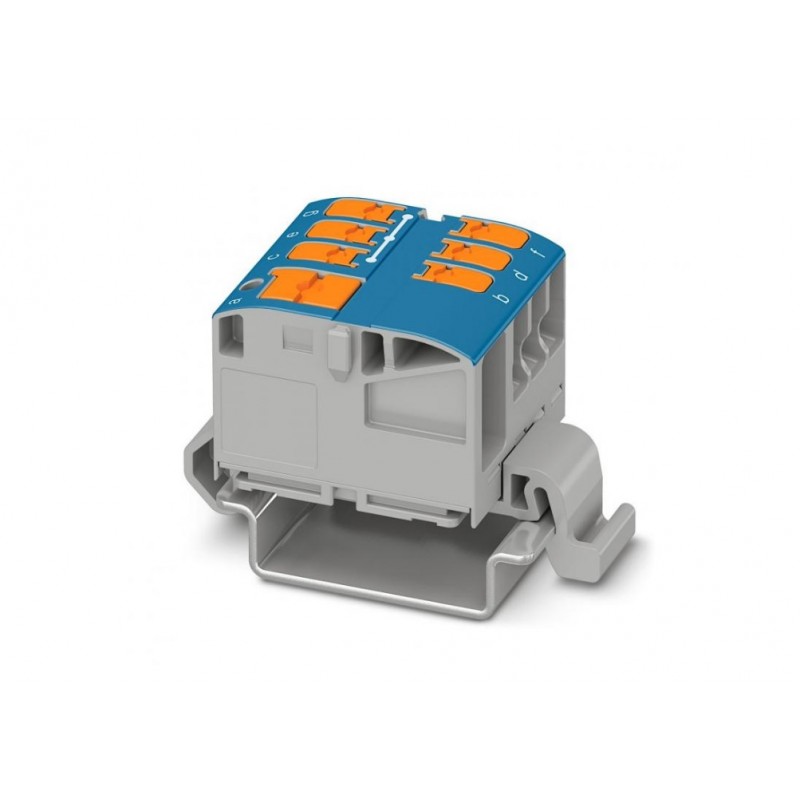

DIN Rail Distribution Block PTVFIX 6/6X2.5-NS35A BU (blue)

DIN Rail Distribution Block PTVFIX 6/6X2.5-NS35A BU (blue) is a single-pole terminal block with 7 connections designed for fast and reliable power distribution in control cabinets, industrial installations and automation systems. The Push-in terminal technology ensures quick, tool-free wiring and a secure electrical connection.

The block supports a rated current of 24 A, a maximum load of 32 A (with 4 mm² wire) and a rated voltage of 690 V. It complies with IEC 60947-7-1 and IEC 60998-2-2, while the housing is made of flame-retardant PA UL94 V0, certified for railway and fire-safety applications (DIN EN 45545-2, NFPA 130).

Designed for DIN rail mounting on NS35/7.5 or NS35/15, resistant to vibration, mechanical shock and extreme temperatures from –60°C to +110°C.

Key technical specifications:

• Number of connections: 7

• Number of poles: 1

• Connection type: Push-in

• Rated voltage: 690 V

• Rated current: 24 A

• Max current: 32 A (4 mm²)

• Wire cross-section range:

  • Solid: 0.14–4 mm²

  • Stranded: 0.14–4 mm²

  • Ferrules: 0.14–2.5 mm²

• Stripping length: 8–10 mm

• Housing material: PA, UL94 V0

• Operating temperature: –60°C … +110°C

• Mounting: DIN rail NS35

• Color: blue (RAL 5015)

• Dimensions: 15.7 × 45.7 × 29.2 mm

Perfect for power distribution, automation cabinets, industrial control systems and low-voltage installations.
