Modular Distribution Board Elegant 1×12 IP40

Modular Distribution Board Elegant 1×12 IP40

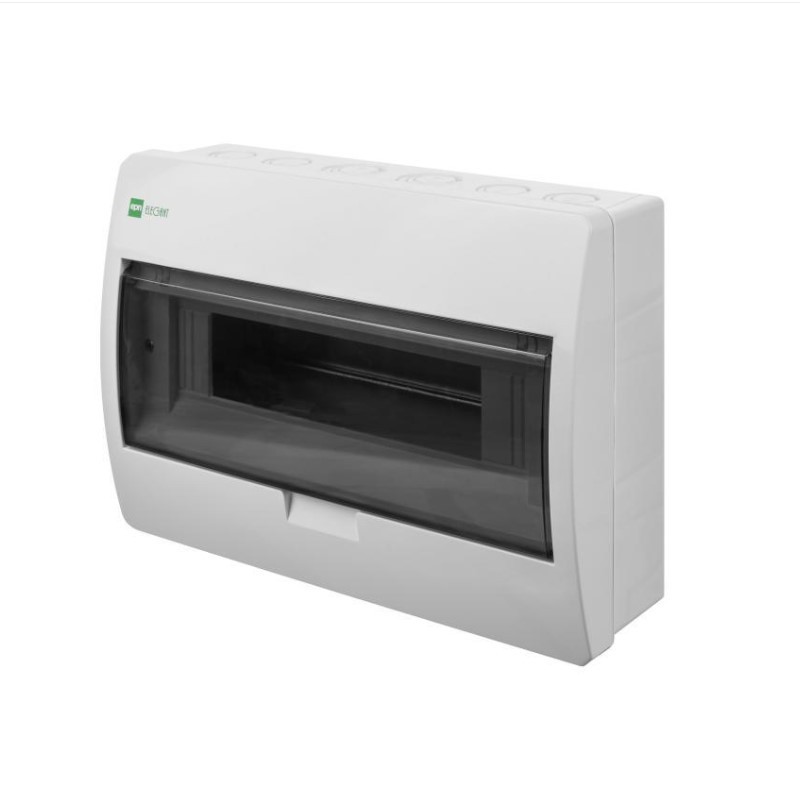

The Elegant 2403-01 1×12 modular distribution board is designed for surface-mounted installation in electrical systems for residential and commercial buildings.

The enclosure supports 12 modules in one row mounted on a standard DIN rail. It comes with N and PE screw terminals, ensuring easy and secure wiring. The smoked transparent door allows quick visual inspection of installed circuit breakers without opening the enclosure.

With a protection rating of IP40 and impact resistance IK05, the enclosure ensures reliable and safe operation in standard indoor electrical installations.

Key Features

• 1 row / 12 modules

• Surface-mounted installation

• Rated voltage 400 V

• Protection class IP40

• Impact resistance IK05

• DIN rail and N/PE terminals included

• Smoked transparent door

• Possibility to seal the enclosure

• Housing made of ABS / polystyrene

• Color white (RAL 9003)

• Operating temperature –20°C to +70°C

Dimensions

• Width: 303 mm

• Height: 212 mm

• Depth: 98 mm

Applications

• residential electrical installations

• apartments and houses

• office buildings

• small industrial electrical systems
