Modular Distribution Board MINI S-6 1×6

Modular Distribution Board MINI S-6 1×6

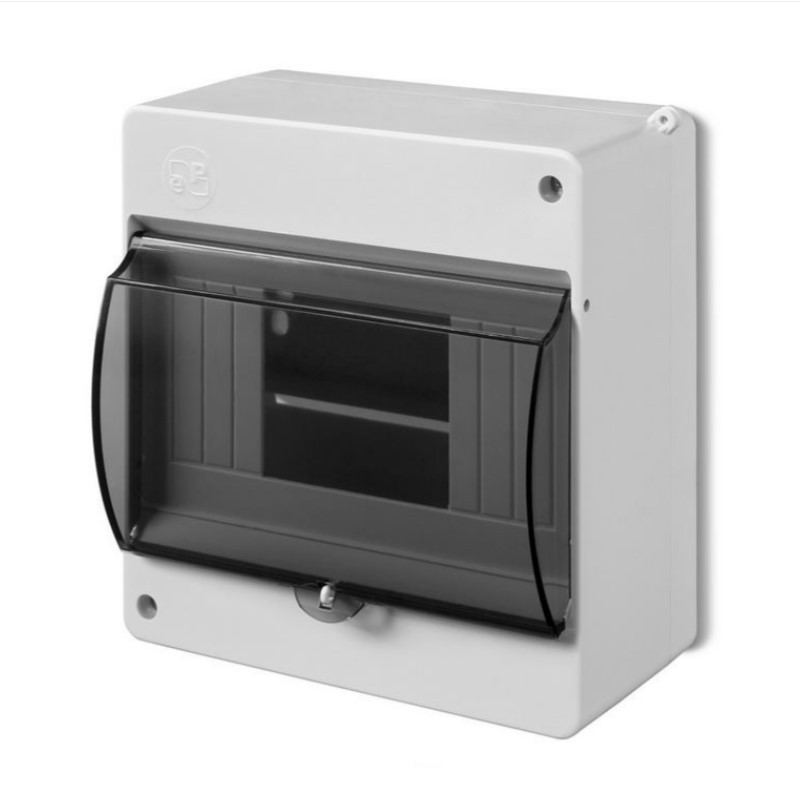

The MINI S-6 2306-01 modular distribution board is a compact enclosure designed for surface-mounted electrical installations. Its small size makes it ideal for installations where mounting space is limited.

The enclosure supports 6 modules in a single row mounted on a standard DIN rail. It includes PE and N terminals, allowing safe and convenient wiring.

The housing is made of durable white plastic, while the smoked transparent cover allows quick inspection of installed circuit breakers without opening the enclosure. The product complies with Class II electrical protection requirements.

Key Features

• 1 row / 6 modules

• Surface-mounted installation

• Rated voltage 400 V

• Protection class IP20

• Impact resistance IK05

• Class II insulation

• Smoked transparent cover

• Housing material polystyrene

• Color white

• Operating temperature –20°C to +70°C

Dimensions

• Width: 130 mm

• Height: 140 mm

• Depth: 83 mm

Applications

• residential electrical installations

• small distribution panels

• auxiliary electrical systems

• control and automation systems
