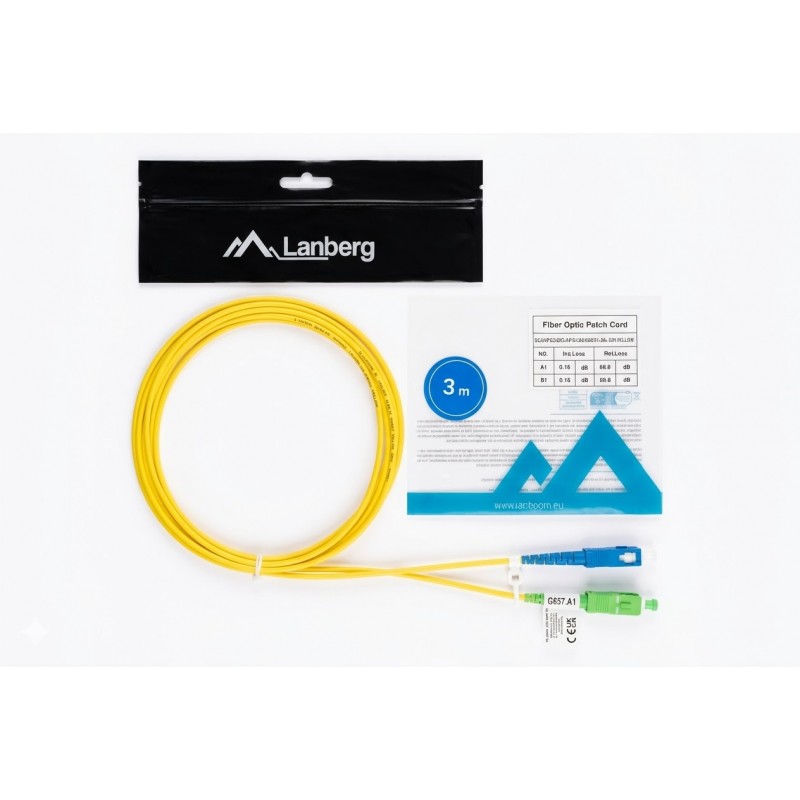

Fiber Optic Patch Cord SM SC/APC – SC/UPC simplex 3 m G657A1 LSZH (yellow)

Fiber Optic Patch Cord SM SC/APC – SC/UPC simplex 3 m G657A1 LSZH (yellow)

This single-mode fiber optic patch cord is designed for reliable and low-loss connections in optical networks. Equipped with SC/APC and SC/UPC connectors, it ensures stable signal transmission in telecommunications and FTTH installations.

The G657A1 fiber provides excellent bend resistance, making installation easier in tight spaces. The LSZH jacket enhances safety by reducing smoke emission and eliminating halogens.

Key features:

• Connectors: SC/APC – SC/UPC

• Single-mode fiber (SM) 9/125 µm

• Fiber type: G657A1 (bend-insensitive)

• Cable construction: simplex

• Length: 3 m

• Cable diameter: 3.0 mm

• Low insertion loss: < 0.2 dB

• High return loss: > 60 dB

• LSZH jacket (low smoke, zero halogen)

• Color: yellow

Applications:
Suitable for FTTH networks, telecommunications systems, data centers, and connections between active and passive optical devices.
