EP-SG7810 Network Switch

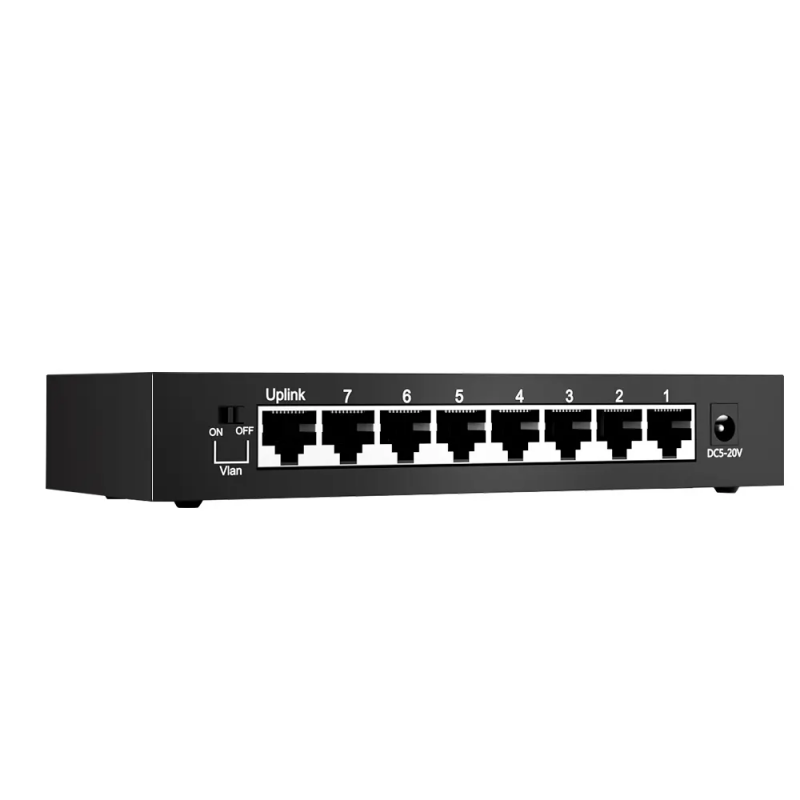

EP-SG7810 Gigabit Network Switch (8 Ports, VLAN, RTL8370N)

The EP-SG7810 is a compact and efficient 8-port gigabit switch designed for high-speed data transmission in home or office networks. Powered by the RTL8370N chipset, it ensures stable performance and supports VLAN functionality for better network segmentation and security.

Key features:

• Model: EP-SG7810

• Ports: 8 x RJ45 10/100/1000 Mbps with Auto MDI-MDIX

• Chipset: RTL8370N

• Standards supported: IEEE 802.3, 802.3u, 802.3x, 802.3az

• Data rate: Up to 1000 Mbps per port

• Forwarding rate:
  – 10 Mbps / 14,880 pps
  – 100 Mbps / 148,800 pps
  – 1000 Mbps / 1,488,000 pps

• LED indicators: Power, Link/Act (10/100/1000 Mbps), VLAN

• VLAN function: Allows port isolation for improved network security and traffic control

• Power input: DC 5V / 1000 mA

• Max power consumption: 4.5W

• Dimensions: 160 x 72 x 24 mm

Operating conditions:

• Operating temperature: 0℃ – 50℃

• Storage temperature: -40℃ – 70℃

• Humidity: 10% – 90% (operating), 5% – 90% (storage), non-condensing

A great choice for creating a reliable wired network with fast data transfer and essential VLAN support. Plug and play — no configuration required.
