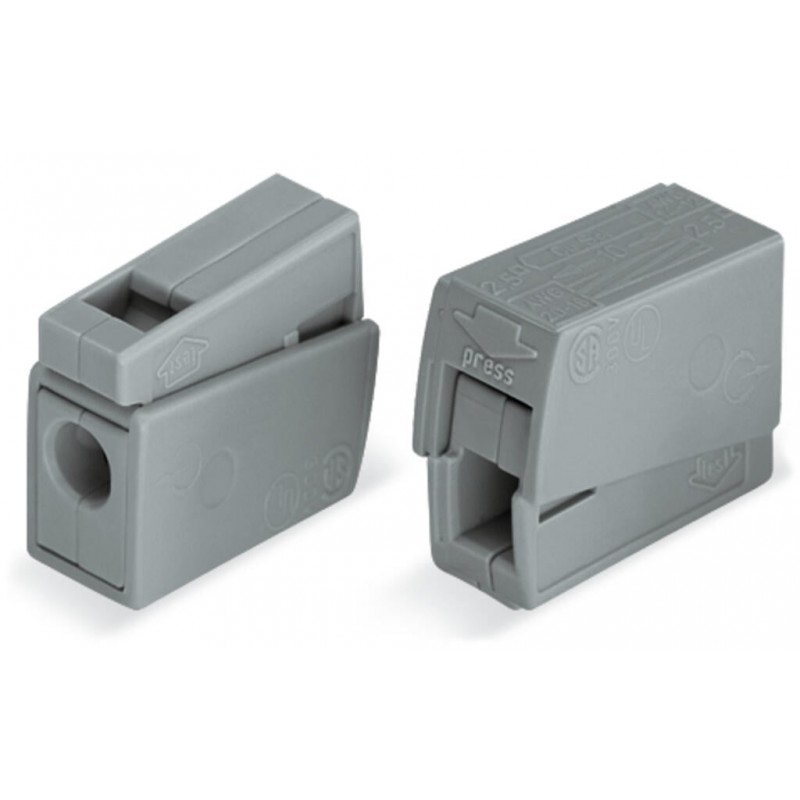

WAGO 224-101 Lighting Connector, Inline, 0.5–2.5 mm²

WAGO 224-101 Lighting Connector, Inline, 0.5–2.5 mm²

The WAGO 224-101 lighting connector is designed for fast and secure connection of luminaires in residential and commercial electrical installations. It enables easy connection of solid and stranded conductors without the need for ferrules or special tools.

The connector features two different connection technologies: PUSH WIRE® on the installation side and CAGE CLAMP® on the luminaire side. This combination ensures reliable, vibration-resistant, and maintenance-free electrical connections.

Rated for 400 V and a current of up to 24 A, the connector is suitable for higher-load lighting circuits. It is ideal for use in offices, residential buildings, and other lighting applications.

Technical specifications

• Model: WAGO 224-101

• Type: inline lighting connector

• Number of terminals: 2

• Number of potentials: 1

• Rated voltage: 400 V

• Rated current: 24 A

• Overvoltage category: III

• Rated impulse voltage: 4 kV

Installation side (PUSH WIRE®):

• Conductor: solid (copper / aluminum)

• Cross-section: 1–2.5 mm²

• Strip length: 9–11 mm

Luminaire side (CAGE CLAMP®):

• Conductor: solid and stranded

• Cross-section: 0.5–2.5 mm²

• Wiring direction: lateral

• Housing material: plastic

• Color: gray

• Dimensions (W × H × D): 8 × 15.5 × 20.4 mm

• Weight: 1.8 g

• Operating temperature: up to +60 °C

• Long-term operating temperature: up to +105 °C
