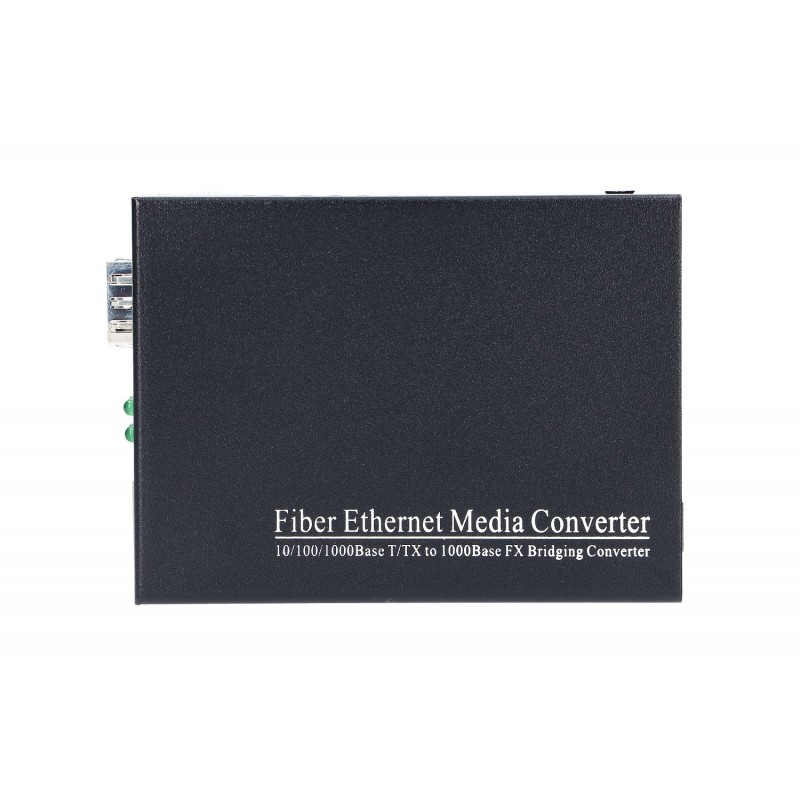

Extralink SEDIR – Ethernet to Fiber Media Converter (SFP)

Extralink SEDIR – Ethernet to Fiber Media Converter (SFP)

The Extralink SEDIR is a versatile media converter designed to convert Ethernet transmission over copper UTP/FTP cables into optical fiber transmission using SFP (Small Form-Factor Pluggable) modules. It is intended for Ethernet network expansion and allows transmission distances of up to 80 km, depending on the SFP module used.

The device features simple plug-and-play installation and easy operation. Its operating status can be monitored locally via diagnostic LEDs on the front panel. Extralink SEDIR supports multiple transmission speeds and media types, including 10/100/1000 Mb/s, as well as Jumbo Frames up to 9216 bytes. It is a cost-effective alternative to popular media converters such as the TP-Link MC220L.

Key features:

• Conversion from 100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX

• Jumbo Frame support (64–9216 bytes)

• Plug-and-play operation

• Auto MDI/MDI-X support

• Half/Full Duplex support

• Rack-mountable in 2U chassis (14/16 slots)

• Metal housing

Technical specifications:

• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z

• Interfaces: 1 × RJ-45 port, 1 × SFP slot

• Data rate: up to 1000 Mb/s

• Ethernet type: Gigabit Ethernet

• Fiber connector: SFP

• Hot-swap support: yes

• Power supply: 100–240 V AC, 50–60 Hz

• Dimensions: 94 × 70.6 × 26.5 mm

• Color: black

• Housing material: metal
