Wyłącznik nadprądowy 3P C 10A 6kA AC MCN310E

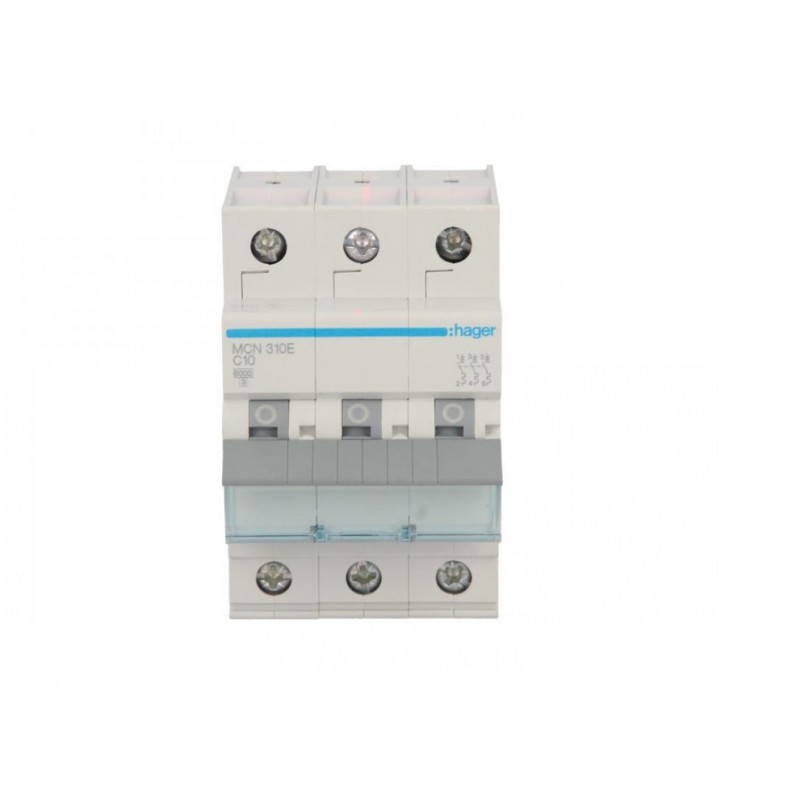

Miniature Circuit Breaker 3P C 10A 6kA AC MCN310E

The HAGER MCN310E three-phase miniature circuit breaker is designed to protect electrical circuits against overloads and short circuits in residential and industrial applications. With a C tripping characteristic, it ensures reliable operation for circuits with moderate inrush currents.

Compact, durable, and easy to install, it provides long-lasting protection and performance.

Technical specifications:

• Rated current: 10 A

• Number of poles: 3P

• Tripping curve: C

• Rated voltage: 230/400 V AC

• Breaking capacity: 6 kA

• Frequency: 50–60 Hz

• Tightening torque: 2.8 Nm

• Wire cross-section: 1–35 mm² (solid), 1–25 mm² (flexible)

• Protection rating: IP20

• Mounting: DIN rail

• Operating temperature: -25°C to +70°C

• Dimensions: 83 × 52.5 × 70 mm

Features:

• Reliable protection against overload and short circuit

• Suitable for three-phase systems

• 360° installation possibility

• High durability and build quality from HAGER
